Lumin X2
15.499,00 CHF
Free Shipping
incl. VAT
incl. 2 CHF SWICO Fee
Guarantee:
2 Years Swiss Guarantee
Delivery Time:
depending on version
Do you have questions about this product?

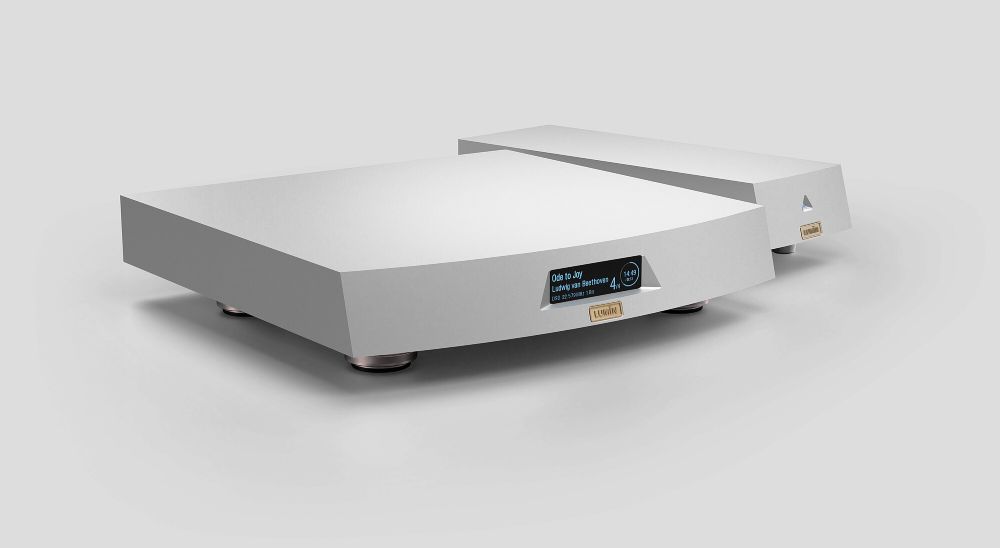

Call us: +41 444 63 72 36 or visit our HiFi Studio in Zürich: Learn moreLumin X2 – newly developed discrete digital-to-analog converter
The X2 is the new heart of LUMIN and builds upon the success of its predecessor, the X1 – with even greater precision, transparency and musicality.
The LUMIN X2 marks the introduction of our newly developed discrete digital-to-analog converter after years of intensive development work.
This fully discrete architecture represents a crucial step in the digital evolution of LUMIN.
By using individually selected components, each part of the conversion process can be specifically optimized – from the circuit topology and power supply to the clocking and signal integrity.
Perfectly matched to our streaming engine, this stable foundation forms the basis for the next chapter of our flagship series.
- Latest LUMIN processor architecture with all current features
- New Dual-LUMIN Discrete DAC
- Completely redesigned output buffer
- Native playback of DSD512 and 32-bit PCM768
- Femto-Clock system with precise FPGA distribution
- Dual-mono power supply with two-stage power supply for the analog section
- SFP connector for optical network with integrated network switch
- USB digital output with native DSD512 support
- PCM and DSD upsampling up to DSD256
- Leedh Processing – lossless digital volume control
A new milestone for LUMIN. This specially developed digital-to-analog converter forms the heart of a completely redesigned system. Circuit design, power management, and clock control have been meticulously optimized for coherence and precision to achieve maximum accuracy in network audio playback.
- Controlled signal path
Each stage of the converter was designed from the ground up. Component layout and conductor routing are designed for minimal susceptibility to interference and optimal channel separation. - Low-noise operation
Special circuits and precise energy management reduce electrical interference fields and create a particularly stable operating environment. - Minimized time errors
The discrete architecture allows direct use of clock and conversion stages without intermediate dividers. The result: more precise timing and significantly reduced jitter.
The LUMIN X2 is the first flagship model with our fastest processor. This architecture, first introduced in 2022, provides the foundation for future developments. Increased processing power and memory enable greater resampling flexibility, improved audio processing, and high future-proofing. Upsampling and downsampling are possible up to DSD256.
- Solid, CNC-milled aluminum housing – manufactured using the same processes as the main chassis.
- Thick aluminum walls for optimal shielding
- Separate digital and analog sections
- Low-noise linear power supply
- Highest quality components throughout the entire power supply
Integrated optical network
-
- An industry first, introduced for the first time in the LUMIN X1 – now also in the X2.
- Complete galvanic isolation from the rest of the network
- Industry-standard SFP for maximum compatibility
- Two network ports for directly connecting additional devices (e.g., NAS).
DSD support:
- Up to DSD512 (22.6 MHz, 1 bit)
PCM-support:
- Up to 768 kHz, 16-32 bit, stereo
Analog output stage:
- LUMIN Discrete DAC
- Fully symmetrical design with high-quality components
- Dual Lundahl LL7401 output transformers
- Femto-clock system with FPGA clock distribution
Upsampling:
- DSD256 upsampling for all formats
- PCM upsampling up to 384 kHz
Digital outputs:
USB:
- Native DSD512-support
- PCM 44.1-768kHz, 16-32bit, Stereo
BNC SPDIF:
- PCM 44.1-192kHz, 16-24bit
- DSD (DoP) 2.8 MHz, 1 bit
Optical network:
- Gigabit SFP (1000Base-T)
- Simultaneous use with RJ45 (e.g. router + NAS)
Power supply:
- External, solid dual-toroid linear power supply
- Separate digital and analog circuits
- Low-noise control
- 9-pin output connector
Dimensions and weight:
Main unit:
- 350 × 345 × 77 mm, 8 kg
Power supply:
- 106 × 334 × 77 mm, 4 kg
feet:
- IsoAcoustics decoupling feet
Finishes:
- Black anodized (with matching power supply)
- Natural anodized finish (with matching power supply)
Streaming protocols:
- UPnP AV with OpenHome extension
- Roon Ready
- Qobuz Connect
- TIDAL Connect
- Spotify Connect
- Compatible with Audirvana
- AirPlay-compatible
- QQMusic (QPlay compatible)
- Gapless playback
- Playlists on the device
App features:
- Native support for TIDAL, MQA, Qobuz, Amazon Music Unlimited, KKBox and TuneIn Radio
- Display of Hi-Res symbols (TIDAL MAX / MQA / Qobuz)
- Volume control
- High-resolution cover display with cache
- Search function
- Multi-day processing
- Composers’ Day
- Album grouping in playlists
- Automatic web links to artists, albums and tracks
- Saving and restoring playlists (including TIDAL and Qobuz)
Supported audio file formats:
- DSD Lossless: DSF, DIFF, DoP
- PCM Lossless: FLAC, ALAC, WAV, AIFF
- Compressed: MP3
- MQA
Inputs:
- Ethernet RJ45 (1000Base-T)
- USB storage devices (FAT32, exFAT, NTFS)
Analog outputs:
- XLR balanced: 6 Vrms, Pin 2 Hot
- RCA unbalanced: 3 Vrms
Supported control units:
- Apple (iOS 11 or later)
- Android (6.0 or newer)
- Apple Silicon (macOS 11 or later, iOS app via App Store)
- Chromebook (Google Play Store required)
Other features:
- Leedh Processing – lossless digital volume control
- MQA QRONO d2a filter for PCM music (except via AirPlay)
- Compatible with LUMIN infrared remote control package
- Firmware updates for z
