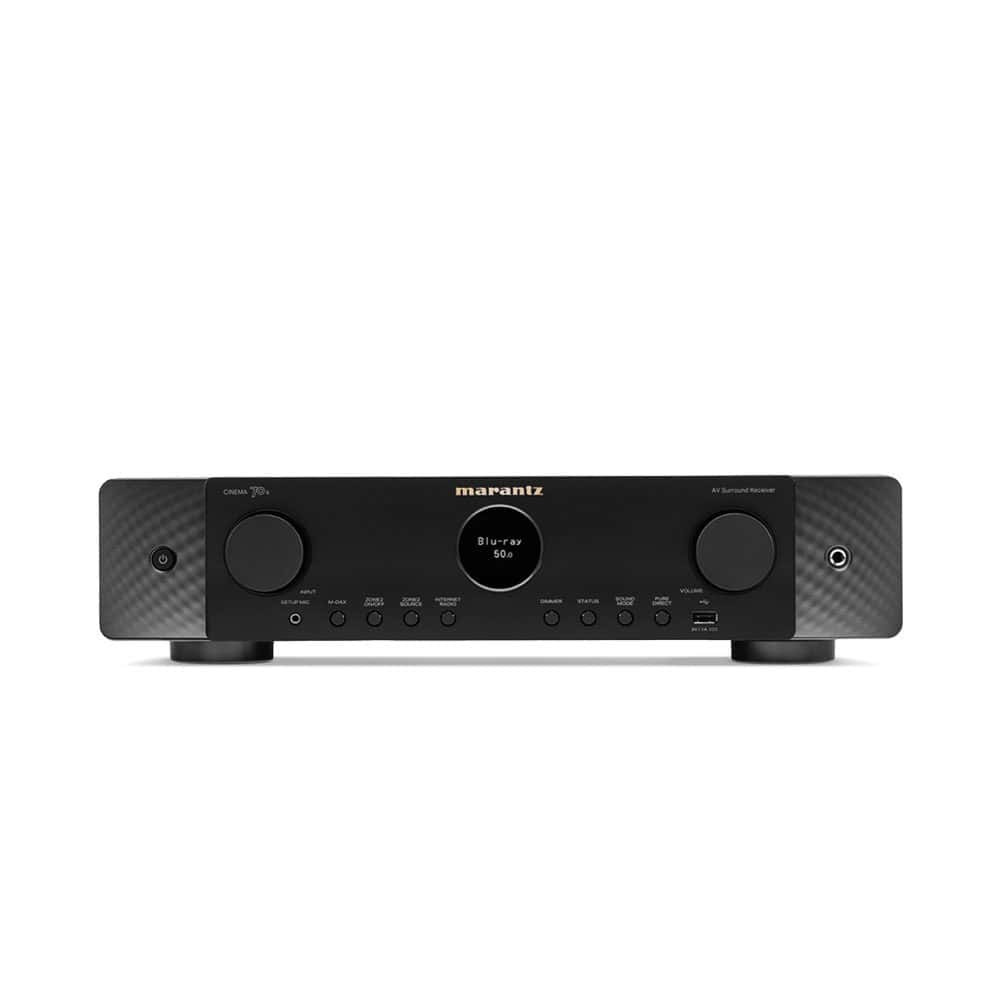

Marantz Cinema 70 Slim Line

POWER AMPLIFIER
Number of Powered Channels: 7
Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive): 50 W
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive): –
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 70 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 100 W
70% Guarantee: Yes
Discrete Power Amplifier: Yes
Amplifier Topology: Class A/B
Current Feedback Topology: No
Bi-Amp Drive: assignable

MULTICHANNEL SURROUND TECHNOLOGIES
DTS:
DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby:
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other:
Max Number of Processing (Preamp) Channels: 7.2

Eingänge/Ausgänge
Composite-Ein-/Ausgänge: 0 / 0
Component Ein- / Ausgang: 0 / 0
HDMI-Ein-/Ausgänge: 6 / 1
Multi-Room Video Out via HDMI: 0 / 0
Analog In / Fixed Level Out: 3 in / 0 out
Phono (MM) Eingang: Yes
Digital In:
Optical / Coaxial: 1 / 1
Mehrraum Ausgang:
analog / digital: 1 / 0
Multichannel Preamp Out: 7.2
Subwoofer Ausgang: 2
7.1 Mehrkanal Eingang: No
Anzahl der Lautsprecher-Terminals: 7
Lautsprecher A / B: assignable
Mehrraum-Lautsprecheranschlüsse: assignable
Front Inputs: USB-A
USB Audio: Yes
FM Tuner with RDS: Yes
DAB+ Tuner: No

HDMI
Total HDMI Inputs / No. Support 8K: 6 / 3
HDCP2.3 support: Yes
HDMI-Ausgänge Hauptzone / Zone: 1 / 0
Analog to HDMI Video Conversion: No
HDMI Upscaling: 1080P/4K to 8K
Audio-Rückkanal für TV-Ton (ARC): eARC
Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate / Quick Frame Transport: Yes / Yes / No
HDMI Pass-Through im Standby-Modus: Yes
HDMI-Steuerung (CEC): Yes
DSD Audio over HDMI: No
Auto LipSync: Yes

PERFORMANCE TECHNOLOGIES
Copper Plated Chassis: No
Toroidal Power Supply Transformer: No
Hyper Dynamic Amplifier Modules (HDAM) (List version): No
Pure Direct Mode: Yes
Gold Plated RCA Terminals: No
Clock Jitter Reducer: No
Acoustic / Room Correction
Audyssey: MultEQ
Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
Audyssey LFC: No
Dirac Live Support: No
Variable Cross Over: Yes
Optimized Bass Redirection: Yes
Bass Sync: No

MUSIC FILE SUPPORT
Lossy Formats: MP3 / WMA / AAC
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio: 2.8 MHz / 5.6 MHz
Gapless Playback: FLAC, WAV ,ALAC, DSD
Compressed Audio Enhancer MDAX2: Yes
Network Audio Sharing: Yes

STREAMING SERVICES
HEOS Multi-room and Streaming: Yes
AirPlay Audio Streaming: AirPlay2
Internet Radio: TuneIn
Spotify*: Spotify Connect
Pandora: Yes
SiriusXM: Yes
Other Streaming Services:
Amazon Music HD
Amazon Music
TIDAL
Deezer
Napster
Soundcloud
Mood Mix
Roon tested: Yes

NETWORK CONNECTIVITY
Ethernet Ports: Yes
Wi-Fi (include version / band): Yes
Bluetooth (Include version): Yes
Bluetooth Re-transmit for Bluetooth headphones: Yes

SMART HOME INTEGRATION AND CONTROL
Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android): Marantz AVR App
HEOS Multi-Room Integrated: Yes
HEOS Link Compatibility:
IR/ IP: Yes /Yes
Multi-Room zones: 2
Zone Audio Source:
HDMI / Opt, Coax / Network, USB / Analog: 2 Ch / 2 Ch / Yes / Yes
Zone Audio Output:
Speaker / Preout: Yes / Yes
Zone HDMI Output from HDMI Source: No
Control Connectivity: IP Control / Web Control / App Control
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Output: 1
HDMI Diagnostics: Yes

Sonstiges
Front Display: Port hole OLED
GUI-Sprachen: 9
Installations-Assistent: Yes
Smart Select on Remote: Yes
Firmware-Update über Netzwerk / USB: Yes / Yes
ECO Mode: Yes
Automatische Abschaltung: Yes
Sleep Timer: Yes

Allgemeines
Metallfront: No
Fernbedienung: RC-050SR
Stromverbrauch in W: 250
Power Consumption No-Sound (ECO on/off) in W: 30 W / 40 W
Standby-Stromverbrauch in W: 0.2
CEC-Standby-Leistungsaufnahme in W: 0.5
Network Standby Consumption in W: Less than 2.0
Maximum Dimensions (W x D x H)
Antenna Vertical in mm: 442 x 384 x 178
Gewicht in kg: 8.7
