Eversolo DAC-Z10

Name: Eversolo DAC-Z10
SKU: EversoloDACZ10
Availability: InStock

1.980,00 CHF

Free Shipping

incl. 8,1% VAT

incl. 2 CHF SWICO Fee

Guarantee:

2 Years Swiss Guarantee

Delivery Time:

approx. 2 Weeks

Do you have questions about this product?

Call us: +41 444 63 72 36 or visit our HiFi Studio in Zürich: Learn more

Description
Technical Information

Eversolo DAC-Z10 DAC and headphone amplifier

The Eversolo DAC-Z10 is a premium-class digital-to-analog converter designed for audiophiles who demand the highest levels of sonic purity and technological precision. Its fully balanced dual-mono architecture is based on two flagship AKM DACs and is supported by separate linear power supplies for the left and right channels, as well as for system control. This isolation minimizes interference and guarantees an ultra-low-noise signal with a THD+N value of just 0.00008 percent and an impressive dynamic range of 130 decibels.

The R2R-based volume control in the analog section preserves the integrity of the audio signal, even at very low levels. The OCXO clock with phase-locked loop (PLL) ensures the highest timing precision. The DAC-Z10 natively supports formats up to PCM 768 kHz/32-bit and DSD512. Thanks to its comprehensive interfaces – USB, optical, coaxial, AES/EBU, HDMI (IIS), ARC, and Bluetooth – the device can be flexibly integrated into any high-quality audio chain. A fully balanced preamplifier with XLR and RCA outputs, as well as a powerful headphone amplifier with a 6.3 mm jack, make the DAC-Z10 the central hub of sophisticated audio systems.

The build quality is first-rate, the housing is uncompromisingly interference-suppressed, and operation via touchscreen, remote control, or app is very simple. An isolated USB audio input and separate digital inputs effectively protect against interference. The internal signal path is consistently designed for maximum clarity and brings out even the finest nuances of sound. The 6.3 mm headphone jack automatically detects the impedance of the connected headphones and adjusts the gain accordingly to deliver a powerful, detailed sound. The Eversolo DAC-Z10 offers uncompromising sound quality and technology.

Specifications

- DAC and headphone amplifier with large touchscreen display and many inputs and outputs
- The DAC-Z10 allows listeners to enjoy authentic sound; thanks to extremely low distortion and a large dynamic range, every note is reproduced crystal clear.
- Operating options: Touchscreen control, remote control, control via mobile app, control via rotary knob on the DAC-Z10
- Includes Eversolo V15 infrared remote control with rechargeable battery
- Eversolo Control App for controlling the DAC-Z10 via a smartphone
- Large 8.8 inch IPS touchscreen display
- Solid housing made of an aluminum alloy, optimized against electrical interference.
- Precise R2R volume control
- 6.3 mm headphone jack with automatic impedance detection and gain adjustment for powerful, detailed sound.
- The high, medium, and low gain settings allow you to adjust the playback to different headphones and listening preferences.
- Recommended headphone impedance: 16 – 300 ohms (low gain: 16 – 32 ohms / high gain: 32 – 300 ohms)
- RCA output for connecting a power amplifier or active speakers
- Symmetrical XLR output for connecting power amplifiers or active loudspeakers
- Analog and digital inputs for connecting input sources (e.g. CD player, portable music player)
- Isolated USB-B port for connecting a computer as a digital audio source and using the DAC-Z10 to decode the audio signal (compatible with Windows 10 and higher, MacOS, Android, iOS) – the isolated USB audio input transmits absolutely clean data and blocks any electrical interference.
- Isolated IIS input for connecting a streamer to the DAC-Z10 – the fully isolated hardware design separates signal and ground between the devices, ensuring clean signals and improved audio clarity.
- Isolated AES/EBU input: To ensure signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input that completely isolates electrical interference between front-end and back-end devices.
- The DAC-Z10 is equipped with HDMI ARC and supports both ARC and eARC modes for effortless integration into your home theater system.
- Connection for an external clock, supports 10-M/25-M clock inputs with an impedance of 50 ohms or 75 ohms.
- Bluetooth input for streaming music from a Bluetooth device
- The grounding connection dissipates interference, eliminates even minor disturbances, and preserves the

Technical Data

Hardware

Main processor: DCP8568
DAC: Dual AK4191+AK4499
Operational amplifier: OPA1612
Power supply: Triple linear power supplies with extremely low noise
Bluetooth chip: Qualcomm QCC5125, Bluetooth version 5.0, AAC and SBC support

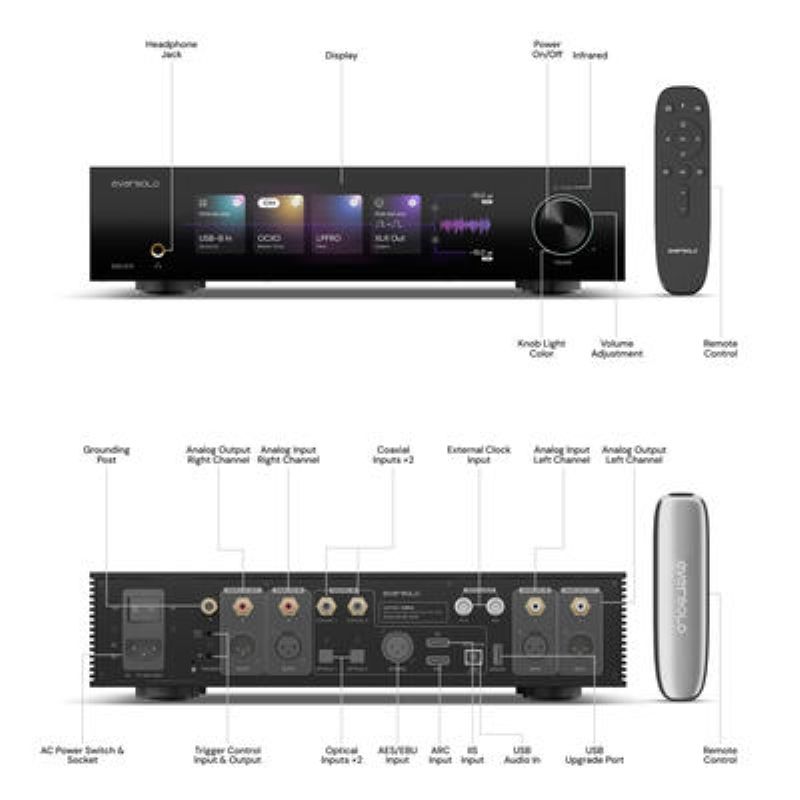

Connections

6.3 mm headphone output with automatic impedance detection
RCA output (RCA right/left)
RCA input (RCA right/left)
XLR output (3-pin XLR right/left)
XLR input (3-pin XLR right/left)
Coaxial input 1
Coaxial input 2
Optical input 1
Optical input 2
AES/EBU input
IIS Input
ARC input
Input for external clock
USB-A Upgrade Port
USB-B audio input
Power input
grounding connection
Trigger input (12V)
Trigger output (12V)
